TRI-ACE-TYRES

Thounsand Miles

Pioneer AT3 is our best choice for light trucks, SUVs, and CUVs with excellent on and off road abilities: great traction, comfortable ride, good noise control, stable handling and long mileage.

PRODUCT FEATURES

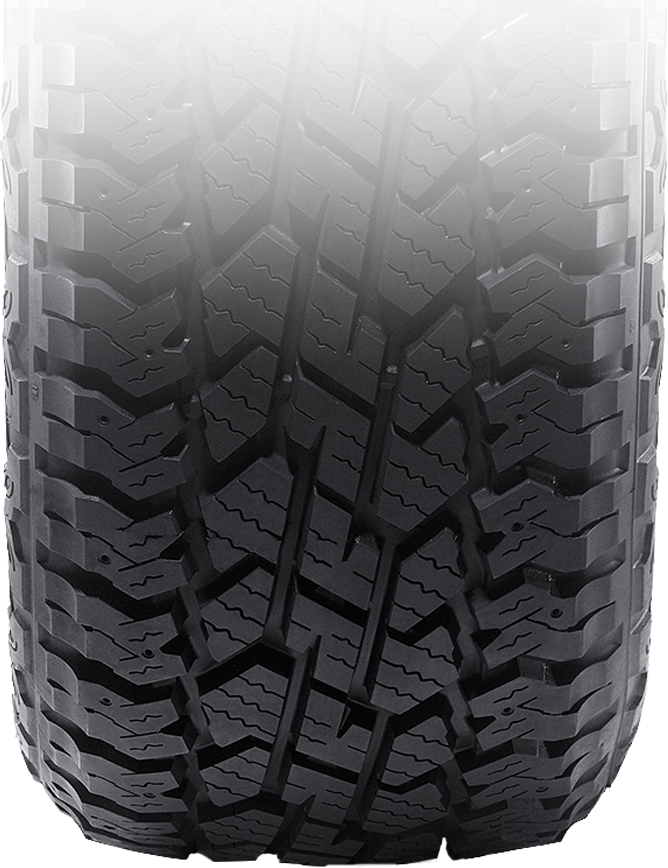

OPEN TREAD WITH

INDEPENDENT BLOCKS

Gives more road contact for excellent handing and produces lower noise for more comfortable driving. .
OPEN TREAD WITH

INDEPENDENT BLOCKS

Provide great traction in mud, sand, and snow traction.Special block edges provides more biting off the road.Seamless bead wire construction makes the Pioneer AT3 strong, safe, and stable. .

PRODUCT FEATURES

AGGRESSIVE SIDEWALL DESIGN

Not only for being enthusiastic but also for gripping on wet, sandy and snow roads.

The links between blocks enhance the strength of the tire and deliver stable driving and better handling.

STUD-ABLE DESIGN FOR A

BETTER ANTI-SKID EFFECT

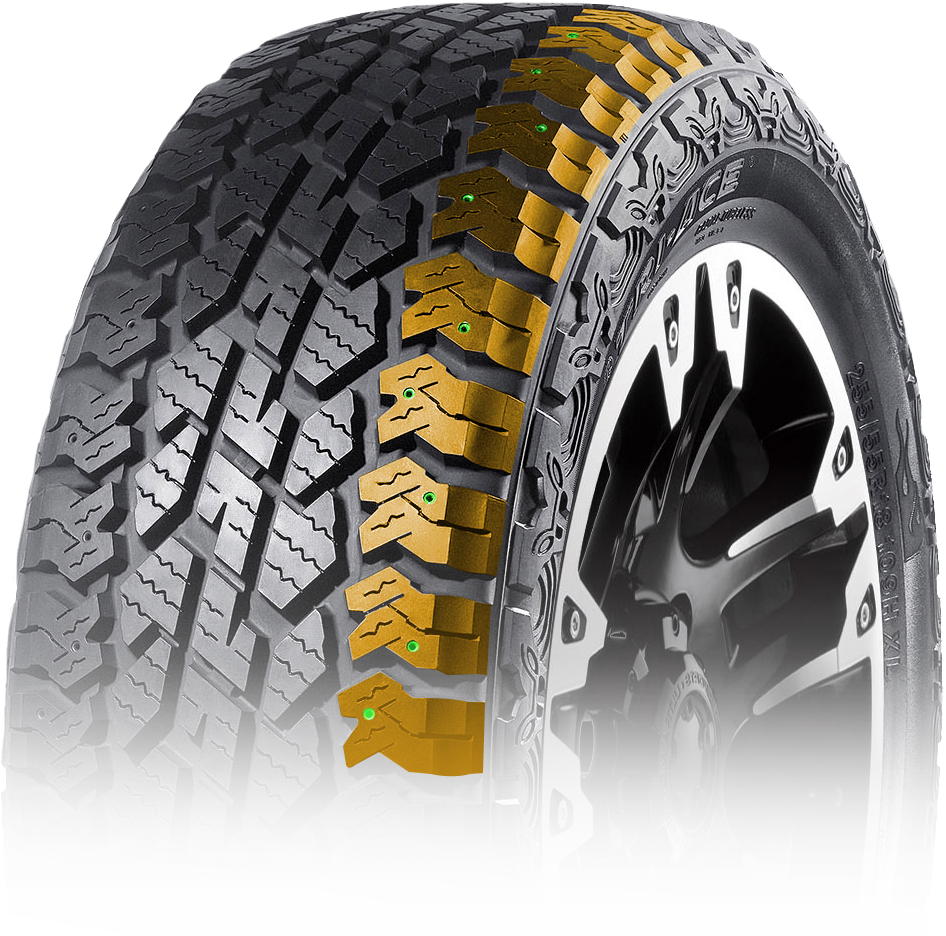

Designed with Studdable holes , users can set nails according to their needs , for snow and ice roads or non-paved roads can play a better anti-skid effect.

PRODUCT ADVANTAGES

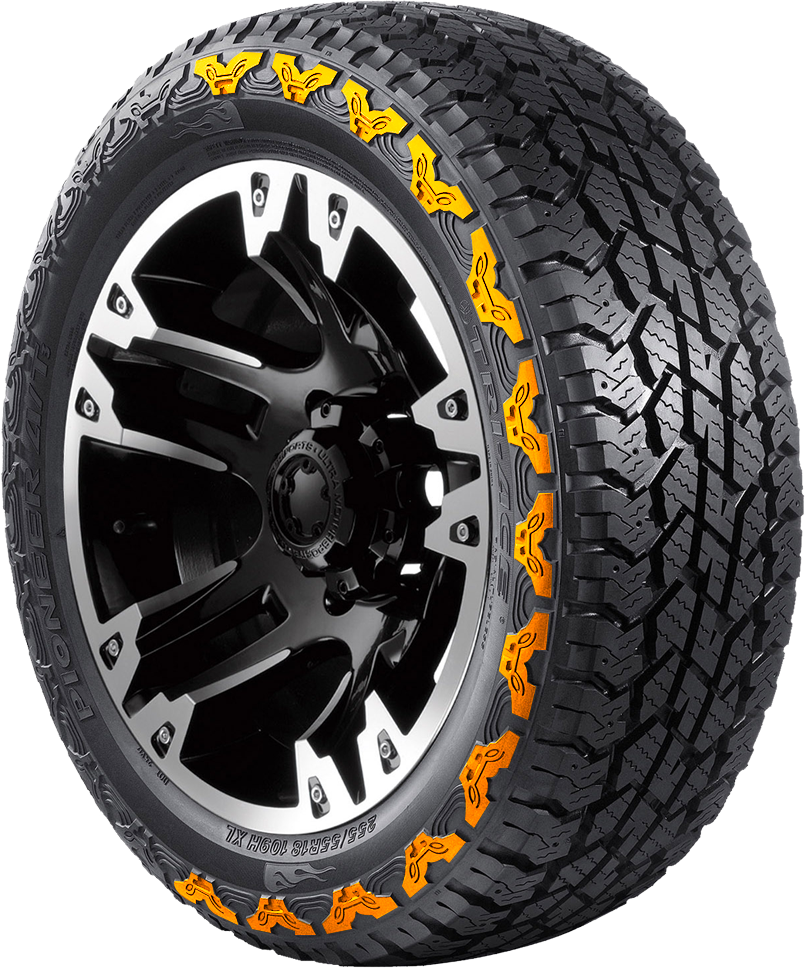

AGGRESSIVE SIDEWALL DESIGN

Bionic lifelike tiger sidewall and open tread

design: make the tire looks overbearing，unique

and individual. At the same time, it provides

strong traction to keep the tire stable in mud,

snow and paved roads.

PRODUCT ADVANTAGES

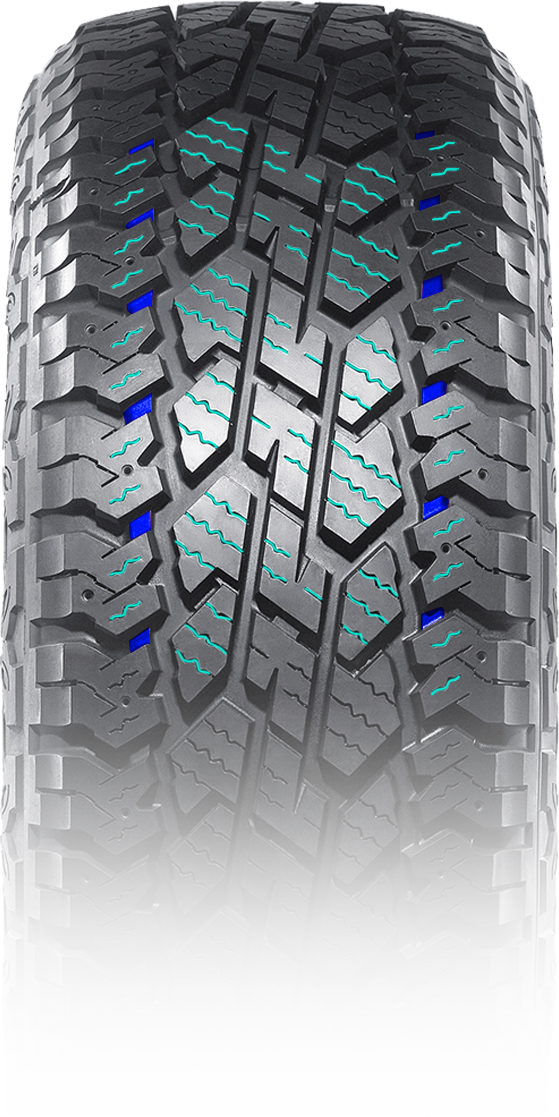

SIMPLE AND NEAT SERRATED

KNIFE GROOVE DESIG

While on snowy and icy roads, snow and ice act like a

knife rupture ease, to form an effective grip.

TIRE SHOULDER GROOVE SMALL LINKS

Greatly enhance the strength of the shoulder, also

strengthening the tire sidewall stiffness.

STRONG AND DURABLE STRUCTURE

MORE TRACTION

The alternating tapered and step block edges both provide additional biting edges for more traction.

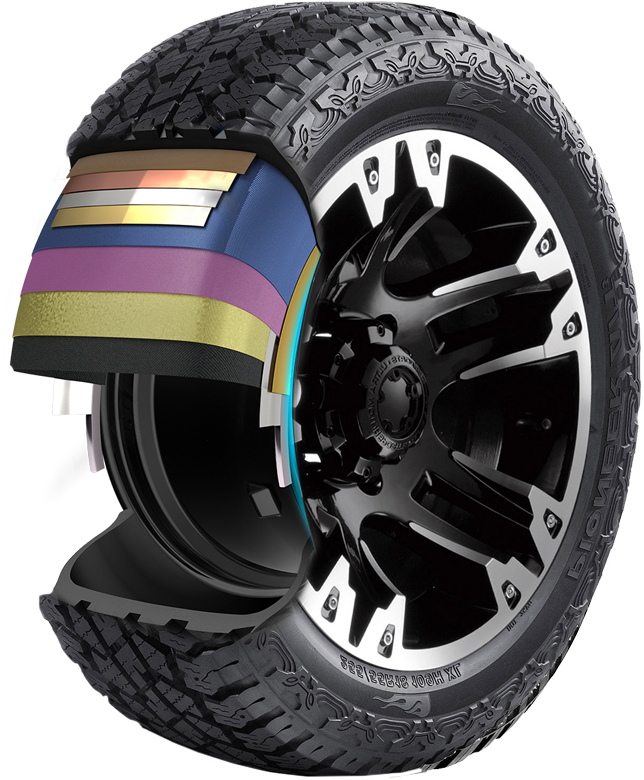

CARCASS STRUCTURE

Using the latest high-strength carcass material, the overall strength of the tire is further improved. Thickened belt bundle steel wire is more resistant to puncture. Using the 2-3ply winding crown belt applied to high-performance car tires, high-speed performance is better.

RIM PROTECTOR

Thick base rubber protects the tire and rim protector design safeguards wheels from damage in rough going.

PRODUCT LIST

Rim Diameter

Size

Product Code

Ply

Load index

Speed

Pattern

Tread Depth (32nd)

Overall Diameter (inch)

Section Width (inch)

Approved Rim Width Range (inch)

Max Load (lbs)

Max Pressure(PSI)

16	LT235/85R16	1100026022	10	120/116	R	-	Pioneer AT3	16	32	9	6-6.5-7	3042/2778	80
16	LT245/75R16	1100026023	6	108/104	S	-	Pioneer AT3	16	30	10	6.5-7-8	2205/2006	50
16	LT245/75R16	1100026024	10	120/116	S	-	Pioneer AT3	16	30	10	6.5-7-8	3042/2778	80
16	LT265/75R16	1100026025	10	123/120	R	-	Pioneer AT3	16	32	10	7-7.5-8	3415/3085	80
16	LT265/75R16	1100026026	6	112/109	T	-	Pioneer AT3	16	32	10	7-7.5-8	2470/2270	50
17	LT235/80R17	1100026029	10	120/117	R	-	Pioneer AT3	16	32	9	6-6.5-7.5	3085/2835	80
17	LT245/70R17	1100026030	10	119/116	R	-	Pioneer AT3	16	31	10	6.5-7-8	3000/2755	80
17	265/65R17	1100026060	-	116	H	XL	Pioneer AT3	13	30	11	7.5-8-9.5	2756	50
17	LT265/70R17	1100026059	10	121/118	R	-	Pioneer AT3	16	32	10	7-8-8.5	3195/2910	80
17	35X12.50R17LT	1100026041	10	121	R	-	Pioneer AT3	17	34	12	8.5-10-11	3195	65
18	255/55R18	1100026010	-	109	H	XL	Pioneer AT3	13	29	10	7-8-9	2271	50
18	265/60R18	1100026061	-	116	H	XL	Pioneer AT3	13	30	11	7.5-8-9.5	2756	50
18	P275/65R18	1100026062	-	114	H	-	Pioneer AT3	13	32	11	7.5-8-9.5	2601	44
18	LT275/65R18	1100026034	10	126/123	S	-	Pioneer AT3	16	32	11	7.5-8-9	3750/3415	80
18	LT285/65R18	1100026035	10	125/122	S	-	Pioneer AT3	17	33	12	8-8.5-10	3640/3305	80
18	35X12.50R18LT	1100026042	10	123	R	-	Pioneer AT3	17	34	12	8.5-10-11	3415	65
19	255/50R19	1100026014	-	107	H	XL	Pioneer AT3	13	29	10	7-8-9	2149	50
20	265/50R20	1100026064	-	112	H	XL	Pioneer AT3	13	30	11	7.5-8.5-9.5	2469	50
20	P275/60R20	1100026063	-	114	H	-	Pioneer AT3	13	33	11	7.5-8-9.5	2601	44
20	LT275/65R20	1100026036	10	126/123	S	-	Pioneer AT3	16	34	11	7.5-8-9.5	3750/3415	80
20	LT285/55R20	1100026037	10	122/119	S	-	Pioneer AT3	16	32	12	8-9-10	3305/3000	80
20	LT305/55R20	1100026038	10	121/118	S	-	Pioneer AT3	16	33	12	8.5-9.5-11	3195/2910	65
20	LT305/60R20	1100026047	10	123/120	R	-	Pioneer AT3	17	34	12	8.5-9-11	3415/3085	65
20	33X12.50R20LT	1100026065	10	114	R	-	Pioneer AT3	17	33	12	8.5-10-11	2600	65
20	35X12.50R20LT	1100026043	10	121	R	-	Pioneer AT3	17	34	12	8.5-10-11	3195	80
22	LT305/50R22	1100026048	10	119/116	R	-	Pioneer AT3	17	34	12	8.5-9.5-11	3000/2755	65
22	LT325/50R22	1100026039	10	122	R	-	Pioneer AT3	17	35	13	9-10-12	3305	65
23	LT375/25R23	1100026069	10	118	H	-	Pioneer AT3	16	30	15	13-13.5-14	2910	65
24	33X12.50R24LT	1100026066	10	118	R	-	Pioneer AT3	17	33	12	8.5-10-11	2910	65
24	33X12.50R24LT	1100026066	10	118	R	-	Pioneer AT3	17	33	12	8.5-10-11	2910	65
24	33X12.50R24LT	1100026066	10	118	R	-	Pioneer AT3	17	33	12	8.5-10-11	2910	65
24	33X12.50R24LT	1100026066	10	118	R	-	Pioneer AT3	17	33	12	8.5-10-11	2910	65
24	33X12.50R24LT	1100026066	10	118	R	-	Pioneer AT3	17	33	12	8.5-10-11	2910	65
24	33X12.50R24LT	1100026066	10	118	R	-	Pioneer AT3	17	33	12	8.5-10-11	2910	65
24	33X12.50R24LT	1100026066	10	118	R	-	Pioneer AT3	17	33	12	8.5-10-11	2910	65
24	33X12.50R24LT	1100026066	10	118	R	-	Pioneer AT3	17	33	12	8.5-10-11	2910	65
24	33X12.50R24LT	1100026066	10	118	R	-	Pioneer AT3	17	33	12	8.5-10-11	2910	65
24	33X12.50R24LT	1100026066	10	118	R	-	Pioneer AT3	17	33	12	8.5-10-11	2910	65
24	33X12.50R24LT	1100026066	10	118	R	-	Pioneer AT3	17	33	12	8.5-10-11	2910	65
24	33X12.50R24LT	1100026066	10	118	R	-	Pioneer AT3	17	33	12	8.5-10-11	2910	65
24	33X12.50R24LT	1100026066	10	118	R	-	Pioneer AT3	17	33	12	8.5-10-11	2910	65
24	33X12.50R24LT	1100026066	10	118	R	-	Pioneer AT3	17	33	12	8.5-10-11	2910	65
24	33X12.50R24LT	1100026066	10	118	R	-	Pioneer AT3	17	33	12	8.5-10-11	2910	65
24	33X12.50R24LT	1100026066	10	118	R	-	Pioneer AT3	17	33	12	8.5-10-11	2910	65
24	33X12.50R24LT	1100026066	10	118	R	-	Pioneer AT3	17	33	12	8.5-10-11	2910	65
24	33X12.50R24LT	1100026066	10	118	R	-	Pioneer AT3	17	33	12	8.5-10-11	2910	65
24	33X12.50R24LT	1100026066	10	118	R	-	Pioneer AT3	17	33	12	8.5-10-11	2910	65
24	33X12.50R24LT	1100026066	10	118	R	-	Pioneer AT3	17	33	12	8.5-10-11	2910	65
24	33X12.50R24LT	1100026066	10	118	R	-	Pioneer AT3	17	33	12	8.5-10-11	2910	65
24	33X12.50R24LT	1100026066	10	118	R	-	Pioneer AT3	17	33	12	8.5-10-11	2910	65
24	33X12.50R24LT	1100026066	10	118	R	-	Pioneer AT3	17	33	12	8.5-10-11	2910	65
24	33X12.50R24LT	1100026066	10	118	R	-	Pioneer AT3	17	33	12	8.5-10-11	2910	65
24	33X12.50R24LT	1100026066	10	118	R	-	Pioneer AT3	17	33	12	8.5-10-11	2910	65
24	33X12.50R24LT	1100026066	10	118	R	-	Pioneer AT3	17	33	12	8.5-10-11	2910	65
24	33X12.50R24LT	1100026066	10	118	R	-	Pioneer AT3	17	33	12	8.5-10-11	2910	65
24	33X12.50R24LT	1100026066	10	118	R	-	Pioneer AT3	17	33	12	8.5-10-11	2910	65
24	33X12.50R24LT	1100026066	10	118	R	-	Pioneer AT3	17	33	12	8.5-10-11	2910	65
24	33X12.50R24LT	1100026066	10	118	R	-	Pioneer AT3	17	33	12	8.5-10-11	2910	65
24	33X12.50R24LT	1100026066	10	118	R	-	Pioneer AT3	17	33	12	8.5-10-11	2910	65
24	33X12.50R24LT	1100026066	10	118	R	-	Pioneer AT3	17	33	12	8.5-10-11	2910	65
24	33X12.50R24LT	1100026066	10	118	R	-	Pioneer AT3	17	33	12	8.5-10-11	2910	65
24	33X12.50R24LT	1100026066	10	118	R	-	Pioneer AT3	17	33	12	8.5-10-11	2910	65
24	33X12.50R24LT	1100026066	10	118	R	-	Pioneer AT3	17	33	12	8.5-10-11	2910	65
24	33X12.50R24LT	1100026066	10	118	R	-	Pioneer AT3	17	33	12	8.5-10-11	2910	65
24	33X12.50R24LT	1100026066	10	118	R	-	Pioneer AT3	17	33	12	8.5-10-11	2910	65
24	33X12.50R24LT	1100026066	10	118	R	-	Pioneer AT3	17	33	12	8.5-10-11	2910	65
24	33X12.50R24LT	1100026066	10	118	R	-	Pioneer AT3	17	33	12	8.5-10-11	2910	65
24	33X12.50R24LT	1100026066	10	118	R	-	Pioneer AT3	17	33	12	8.5-10-11	2910	65
24	33X12.50R24LT	1100026066	10	118	R	-	Pioneer AT3	17	33	12	8.5-10-11	2910	65
24	33X12.50R24LT	1100026066	10	118	R	-	Pioneer AT3	17	33	12	8.5-10-11	2910	65
